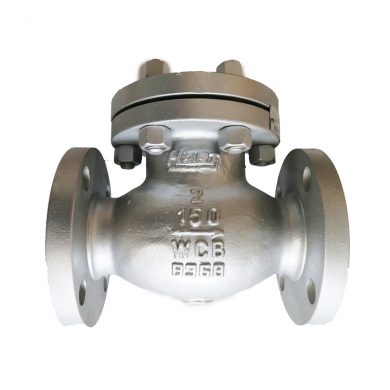

Cast Steel Swing Check Valve
BODY WCB PRESSURE (CLASS) 150 Lbs, 300 Lbs TRIM HF(5), HFS (8) CONNECTION Flange RF SIZE (150 Lbs) 2", 3", 4", 6", 8", 10", 12" SIZE (300 Lbs) 2", 4", 6", 8"
Stainless Steel Globe Valve
BODY F316, CF8, CF8M PRESSURE (CLASS) 150 Lbs, 300 Lbs, 800 Lbs TRIM 304, 316 CONNECTION Flange RF, NPT, SW SIZE (150 Lbs) 1/2", 3/4", 1", 1.5", 2", 3", 4", 6", 8" SIZE (300&800 Lbs) 1/2", 3/4", 1", 1.5", 2"
Forged Steel Y Globe Valve 800lb, & 1500lb
Features Outside Screw and Yoke (OS&Y) Two piece self aligning packing gland Captured Graphite Spiral wound gasket Integral backseat Socket weld ends to ASMS B6.11 Threaded Ends (NPT) to ANSI/ASME B1.20.1 NACE MR-01-75 Options Alternate Trims Alternate Body Materials Welded Seats Full Port
Forged Steel Globe Valve (800Lbs, & 1500lbs)
BODY A105, A105N PRESSURE (CLASS) 800 Lbs, 1500 Lbs TRIME HF(5), HFS(8) CONNECTION NPT, SW SIZE 1/2", 3/4", 1", 1.5", 2"
Forged Steel Globe Valve (150lbs, 300lbs, & 600lbs)
BODY A105, A105N PRESSURE (CLASS) 150 Lbs, 300 Lbs, 600 Lbs TRIM HF(5), HFS(8) CONNECTION Flange RF SIZE 1/2", 3/4", 1", 1.5"
Cast Steel Globe Valve
Cast Steel Globe Valves หรือ โกลบวาล์วประเภทเหล็กหล่อ BODY WCB PRESSURE (Class) 150 Lbs, 300 Lbs, 600 Lbs TRIM HF(5), HFS(8) CONNECTION Flange RF SIZE (150 Lbs) 2", 2.5", 3", 4", 5", 6", 8" SIZE (300 Lbs) 2", 2.5", 3", 4", 6" SIZE (600 Lbs) 2", 3", 4"
Stainless Steel Gate Valve
click for more detail

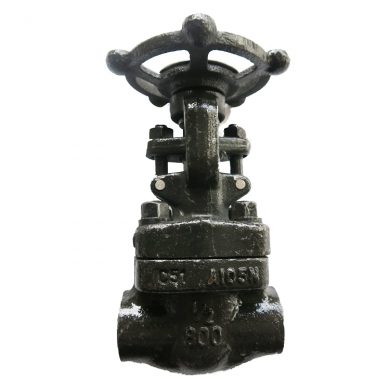

Forged Steel Gate Valve (800Lbs & 1500Lbs)
click for more detail

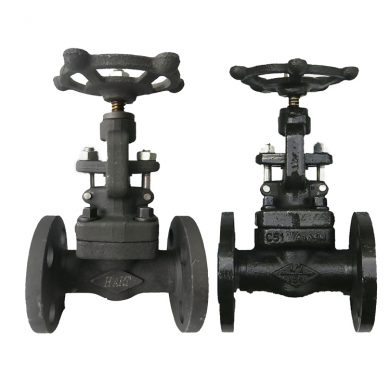

Forged Steel Gate Valve (150 Lbs, 300 Lbs, 600 Lbs)
click for more detail
